#AutoIt3Wrapper_UseX64=y ; Set to Y or N depending on your situation/preference!!
#include-once
#include <WinAPIFiles.au3> ; for _WinAPI_Wow64EnableWow64FsRedirection
#include <ScreenCapture.au3> ;_ScreenCapture_CaptureWnd etc. ;using this in the example to create a test image, otherwise not neccessary here
#Region When running compiled script, Install needed DLLs if they don't exist yet
If Not FileExists("ImageSearchDLLx32.dll") Then FileInstall("ImageSearchDLLx32.dll", "ImageSearchDLLx32.dll", 1);FileInstall ( "source", "dest" [, flag = 0] )
If Not FileExists("ImageSearchDLLx64.dll") Then FileInstall("ImageSearchDLLx64.dll", "ImageSearchDLLx64.dll", 1)
If Not FileExists("msvcr110d.dll") Then FileInstall("msvcr110d.dll", "msvcr110d.dll", 1);Microsoft Visual C++ Redistributable dll x64
If Not FileExists("msvcr110.dll") Then FileInstall("msvcr110.dll", "msvcr110.dll", 1);Microsoft Visual C++ Redistributable dll x32
#EndRegion
Local $h_ImageSearchDLL = -1; Will become Handle returned by DllOpen() that will be referenced in the _ImageSearchRegion() function
#Region TESTING/Example
Local $bTesting = False; Change to TRUE to turn on testing/example
If $bTesting Then
cr(">" & "_ImageSearchStartup()=" & _ImageSearchStartup(), 2)
OnAutoItExitRegister(_ImageSearchShutdown)
cr("!Testing...")
;using Notepad as a simple example
#Region Notepad Snapshot Creation
$hWin = WinGetHandle("[CLASS:Notepad]")
If Not IsHWnd($hWin) Then
If Run("notepad.exe") = 0 Then cr("Couldn't run notepad.exe")
Local $hWin = WinWait("[CLASS:Notepad]", "", 10)
If $hWin = 0 Then cr("Notepad WinWait Timeout!")
EndIf
WinSetState($hWin, "", @SW_RESTORE)
WinSetState($hWin, "", @SW_SHOW)
WinActivate($hWin)
Local $testimage = "24bit.bmp"
_ScreenCapture_CaptureWnd($testimage, $hWin, 0, 0, -1, -1, False);_ScreenCapture_CaptureWnd ( $sFileName, $hWnd [, $iLeft = 0 [, $iTop = 0 [, $iRight = -1 [, $iBottom = -1 [, $bCursor = True]]]]] )
cr("made Notepad Window screenshot")
#EndRegion Notepad Snapshot Creation
#Region Test if application appeared
Local $y = 0, $x = 0, $result
$result = _ImageSearch($testimage, 1, $x, $y, 0, 0);_ImageSearch($findImage, $resultPosition, ByRef $x, ByRef $y, $tolerance, $transparency = 0)
If $result = 1 Then
cr("! $result=" & $result, 1)
MouseMove($x, $y, 0)
cr("+" & "recognised notepad! moved mouse to center of notepad!")
Else
cr("! $result=" & $result, 1)
Exit
EndIf
#EndRegion Test if application appeared
#Region Test if application vanished
WinSetState($hWin, "", @SW_MINIMIZE)
Local $y = 0, $x = 0, $result
$result = _ImageSearch($testimage, 1, $x, $y, 0, 0);_ImageSearch($findImage, $resultPosition, ByRef $x, ByRef $y, $tolerance, $transparency = 0)
If $result = 1 Then
cr("! $result=" & $result, 1)
Exit
Else
cr("! $result=" & $result, 1)
cr("+" & "notepad dissapeared!")
EndIf
#EndRegion Test if application vanished
cr()
cr("!Test finished")
EndIf
#EndRegion TESTING/Example
#Region ImageSearch Startup/Shutdown

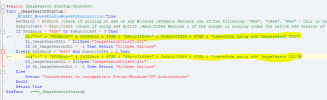

Func _ImageSearchStartup()
_WinAPI_Wow64EnableWow64FsRedirection(True)
$sOSArch = @OSArch ;Check if running on x64 or x32 Windows ;@OSArch Returns one of the following: "X86", "IA64", "X64" - this is the architecture type of the currently running operating system.
$sAutoItX64 = @AutoItX64 ;Check if using x64 AutoIt ;@AutoItX64 Returns 1 if the script is running under the native x64 version of AutoIt.
If $sOSArch = "X86" Or $sAutoItX64 = 0 Then
cr("+>" & "@OSArch=" & $sOSArch & @TAB & "@AutoItX64=" & $sAutoItX64 & @TAB & "therefore using x32 ImageSearch DLL")
$h_ImageSearchDLL = DllOpen("ImageSearchDLLx32.dll")
If $h_ImageSearchDLL = -1 Then Return "DllOpen failure"
ElseIf $sOSArch = "X64" And $sAutoItX64 = 1 Then
cr("+>" & "@OSArch=" & $sOSArch & @TAB & "@AutoItX64=" & $sAutoItX64 & @TAB & "therefore using x64 ImageSearch DLL")
$h_ImageSearchDLL = DllOpen("ImageSearchDLLx64.dll")
If $h_ImageSearchDLL = -1 Then Return "DllOpen failure"
Else
Return "Inconsistent or incompatible Script/Windows/CPU Architecture"
EndIf
Return True
EndFunc ;==>_ImageSearchStartup
Func _ImageSearchShutdown()
DllClose($h_ImageSearchDLL)
_WinAPI_Wow64EnableWow64FsRedirection(False)
cr(">" & "_ImageSearchShutdown() completed")
Return True
EndFunc ;==>_ImageSearchShutdown
#EndRegion ImageSearch Startup/Shutdown
#Region ImageSearch UDF;slightly modified
; ------------------------------------------------------------------------------
;
; AutoIt Version: 3.0
; Language: English
; Description: Functions that assist with Image Search
; Require that the ImageSearchDLL.dll be loadable
;
; ------------------------------------------------------------------------------
;===============================================================================
;
; Description: Find the position of an image on the desktop
; Syntax: _ImageSearchArea, _ImageSearch
; Parameter(s):
; $findImage - the image to locate on the desktop
; $tolerance - 0 for no tolerance (0-255). Needed when colors of
; image differ from desktop. e.g GIF
; $resultPosition - Set where the returned x,y location of the image is.
; 1 for centre of image, 0 for top left of image
; $x $y - Return the x and y location of the image
; $transparency - TRANSBLACK, TRANSWHITE or hex value (e.g. 0xffffff) of
; the color to be used as transparency; can be omitted if
; not needed
;
; Return Value(s): On Success - Returns True
; On Failure - Returns False
;
; Note: Use _ImageSearch to search the entire desktop, _ImageSearchArea to specify
; a desktop region to search
;
;===============================================================================
Func _ImageSearch($findImage, $resultPosition, ByRef $x, ByRef $y, $tolerance, $transparency = 0)
Return _ImageSearchArea($findImage, $resultPosition, 0, 0, @DesktopWidth, @DesktopHeight, $x, $y, $tolerance, $transparency)
EndFunc ;==>_ImageSearch
Func _ImageSearchArea($findImage, $resultPosition, $x1, $y1, $right, $bottom, ByRef $x, ByRef $y, $tolerance = 0, $transparency = 0);Credits to Sven for the Transparency addition
If Not FileExists($findImage) Then Return "Image File not found"
If $tolerance < 0 Or $tolerance > 255 Then $tolerance = 0
If $h_ImageSearchDLL = -1 Then _ImageSearchStartup()
If $transparency <> 0 Then $findImage = "*" & $transparency & " " & $findImage
If $tolerance > 0 Then $findImage = "*" & $tolerance & " " & $findImage
$result = DllCall($h_ImageSearchDLL, "str", "ImageSearch", "int", $x1, "int", $y1, "int", $right, "int", $bottom, "str", $findImage)
If @error Then Return "DllCall Error=" & @error
If $result = "0" Or Not IsArray($result) Or $result[0] = "0" Then Return False
$array = StringSplit($result[0], "|")
If (UBound($array) >= 4) Then
$x = Int(Number($array[2])); Get the x,y location of the match
$y = Int(Number($array[3]))
If $resultPosition = 1 Then
$x = $x + Int(Number($array[4]) / 2); Account for the size of the image to compute the centre of search
$y = $y + Int(Number($array[5]) / 2)
EndIf
Return True
EndIf
EndFunc ;==>_ImageSearchArea
;===============================================================================
;
; Description: Wait for a specified number of seconds for an image to appear
;
; Syntax: _WaitForImageSearch, _WaitForImagesSearch
; Parameter(s):
; $waitSecs - seconds to try and find the image
; $findImage - the image to locate on the desktop
; $tolerance - 0 for no tolerance (0-255). Needed when colors of
; image differ from desktop. e.g GIF
; $resultPosition - Set where the returned x,y location of the image is.
; 1 for centre of image, 0 for top left of image
; $x $y - Return the x and y location of the image
; $transparency - TRANSBLACK, TRANSWHITE or hex value (e.g. 0xffffff) of
; the color to be used as transparency can be omitted if
; not needed
;
; Return Value(s): On Success - Returns 1
; On Failure - Returns 0
;
;
;===============================================================================
Func _WaitForImageSearch($findImage, $waitSecs, $resultPosition, ByRef $x, ByRef $y, $tolerance, $transparency = 0)
$waitSecs = $waitSecs * 1000
$startTime = TimerInit()
While TimerDiff($startTime) < $waitSecs
Sleep(100)
If _ImageSearch($findImage, $resultPosition, $x, $y, $tolerance, $transparency) Then
Return True
EndIf
WEnd
Return False
EndFunc ;==>_WaitForImageSearch
;===============================================================================
;
; Description: Wait for a specified number of seconds for any of a set of
; images to appear
;
; Syntax: _WaitForImagesSearch
; Parameter(s):
; $waitSecs - seconds to try and find the image
; $findImage - the ARRAY of images to locate on the desktop
; - ARRAY[0] is set to the number of images to loop through
; ARRAY[1] is the first image
; $tolerance - 0 for no tolerance (0-255). Needed when colors of
; image differ from desktop. e.g GIF
; $resultPosition - Set where the returned x,y location of the image is.
; 1 for centre of image, 0 for top left of image
; $x $y - Return the x and y location of the image
; $transparent - TRANSBLACK, TRANSWHITE or hex value (e.g. 0xffffff) of
; the color to be used as transparent; can be omitted if
; not needed
;
; Return Value(s): On Success - Returns the index of the successful find
; On Failure - Returns 0
;
;
;===============================================================================
Func _WaitForImagesSearch($findImage, $waitSecs, $resultPosition, ByRef $x, ByRef $y, $tolerance, $transparency = 0)
$waitSecs = $waitSecs * 1000
$startTime = TimerInit()
While TimerDiff($startTime) < $waitSecs
For $i = 1 To $findImage[0]
Sleep(100)
If _ImageSearch($findImage[$i], $resultPosition, $x, $y, $tolerance, $transparency) Then
Return $i
EndIf
Next
WEnd
Return False
EndFunc ;==>_WaitForImagesSearch
#EndRegion ImageSearch UDF;slightly modified
#Region My Custom ConsoleWrite/debug Function
Func cr($text = "", $addCR = 1, $printTime = False) ;Print to console
Static $sToolTip
If Not @Compiled Then
If $printTime Then ConsoleWrite(@HOUR & ":" & @MIN & ":" & @SEC & ":" & @MSEC & " ")
ConsoleWrite($text)
If $addCR >= 1 Then ConsoleWrite(@CR)
If $addCR = 2 Then ConsoleWrite(@CR)
Else
If $printTime Then $sToolTip &= @HOUR & ":" & @MIN & ":" & @SEC & ":" & @MSEC & " "
$sToolTip &= $text
If $addCR >= 1 Then $sToolTip &= @CR
If $addCR = 2 Then $sToolTip &= @CR
ToolTip($sToolTip)
EndIf
Return $text
EndFunc ;==>cr
#EndRegion My Custom ConsoleWrite/debug Function
